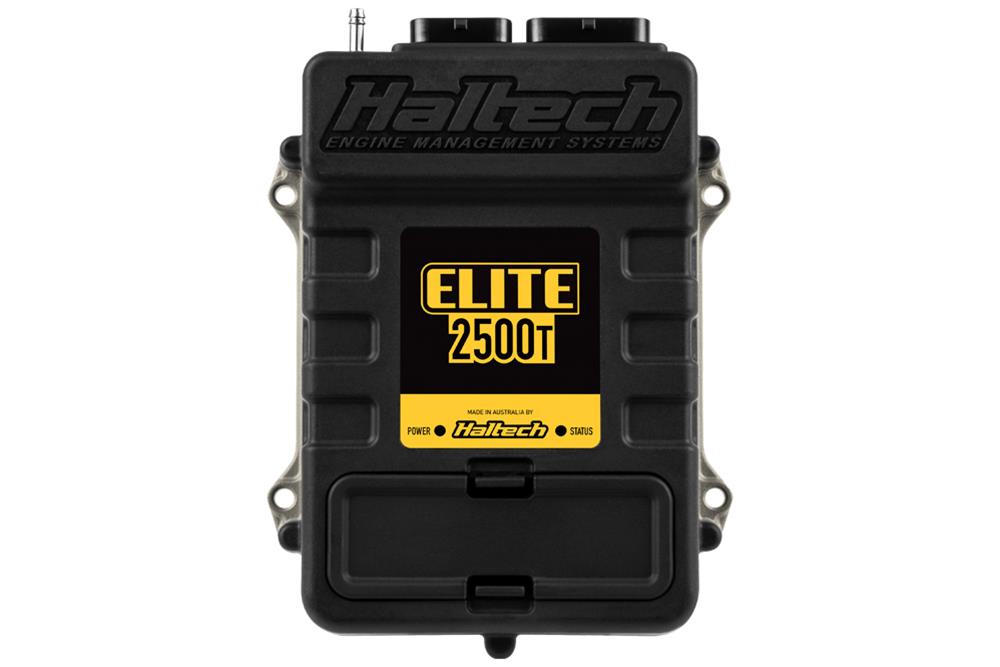

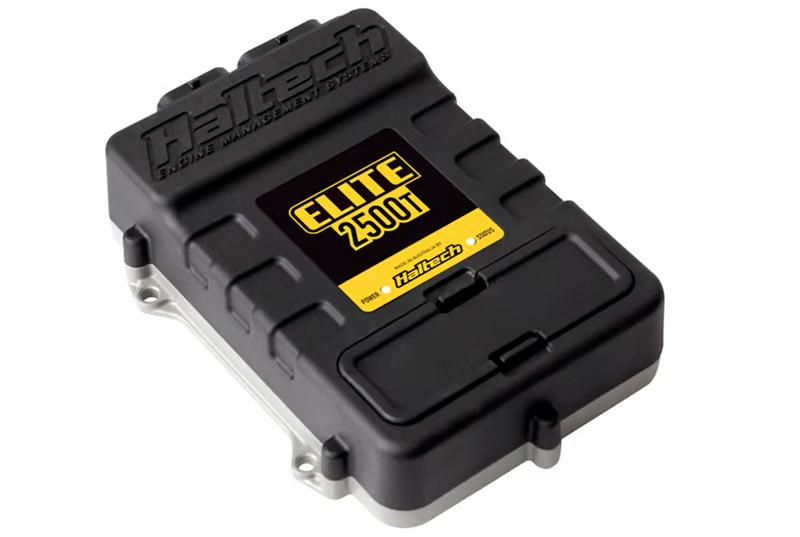

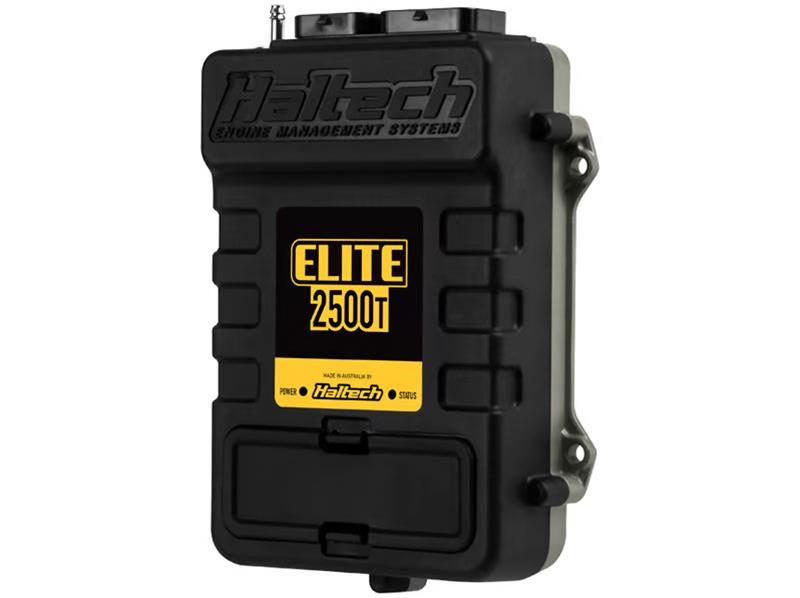

HalTech Elite 2500T ECU HT-151310

HalTech Elite 2500T ECU

The Haltech Elite 2500T ECU takes the art of engine calibration to a whole new level. Featuring a robust environmentally sealed waterproof case, drive by wire throttle control, intake and exhaust cam control, short term and long term map learning, dual channel knock control, and much more, the Elite 2500T provides engine calibrators the tools they need to get the job done right. Alongside this Elite 2500T ECU is the Elite Software Programmer (ESP) that brings levels of functionality and user friendliness never seen before in an engine control package. Together they offer true cutting edge technology to tuners and performance enthusiasts worldwide. At the forefront of today's cutting edge engine management technology, HalTech is well-known for high horsepower engine management, which complements their harnesses and add-ons.

Product Overview:

* Includes: Elite 2500 T ECU with DBW, Advanced Torque Management and Race Functions, and USB programming cable
* Elite 2500T ECU is a top of the range, two-connector ECU with Advanced Torque Management (ATM)
* Ideal for popular late model performance and racing applications
* Supports 1 to 12-cylinder engines and 2 to 4 rotor engines
* Normally aspirated or forced induction
* Load sensing by Throttle Position (TPS), Manifold Absolute Pressure (MAP) or Mass Air Flow (MAF)
* Staged, Sequential, semi-sequential, batch or multipoint injection patterns
* Distributor ignition systems, multi-coil systems, expand CDI range or Haltech Multiplex CDI systems
* Connect to a wide range of display dashes and expansion devices via CAN
* Waterproof case (with pocket cover fitted)
* 8 x fuel injection outputs
* 8 x ignition outputs
* 12 x digital outputs
* 10 x analogue voltage inputs
* 4 x synchronized pulsed inputs
* 4 x dedicated inputs (dual knock, ignition switch and onboard MAP Sensor)
* 2 x dedicated engine position inputs with extensive trigger type support
* Up to 45 channels of input and output (I/O) expansion (via CAN)
* USB Laptop communication (Windows)
* ESP Calibration Software—intuitive and easy to use
