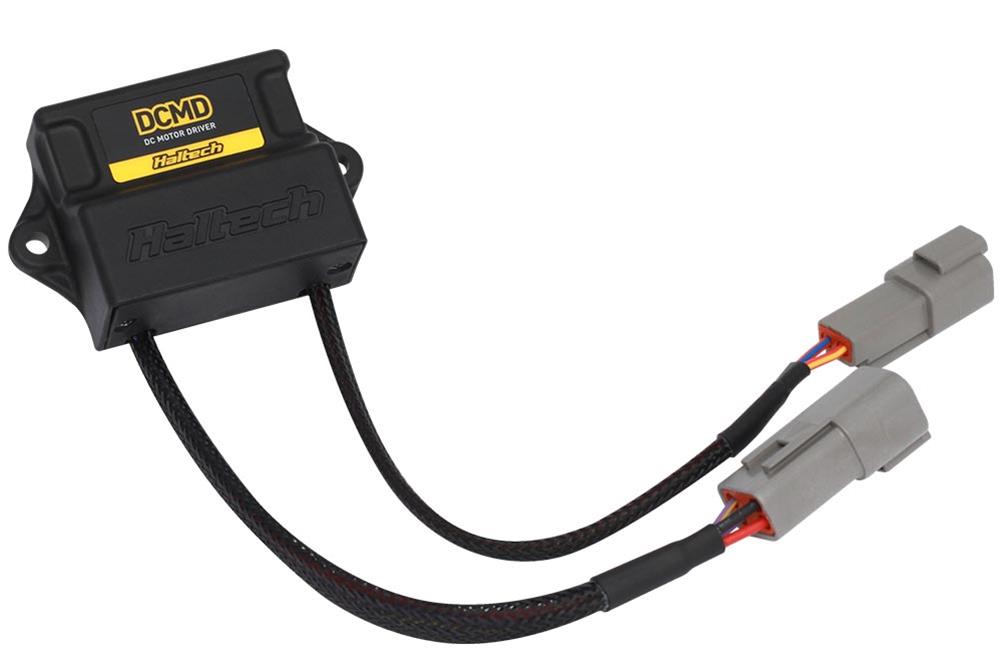

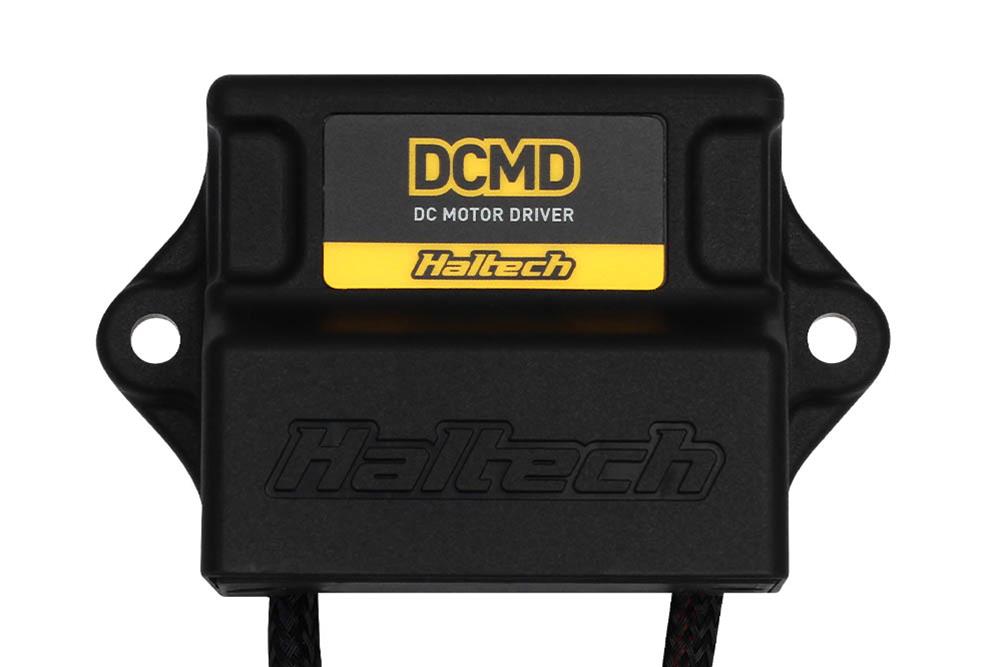

HalTech DC Motor Drivers HT-038009

DCMD - Direct Current Motor Driver

For use with turbosmart electronic wastegates varex motors DC motors.

HalTech DC Motor Drivers

HalTech DC motor drivers are designed to drive a direct current motor, like the Turbosmart electric wastegate or Varex systems. They can also be used to drive high-power, external electric throttle bodies. Compatible with all Elite and Nexus Series devices, HalTech's 2-channel DCMDs are rated for 8 amps continuous per channel, with a maximum current of 30 amps.

Features:

* Two independent channels
* Switching speeds up to 2.2kHz
* Limited automatic overcurrent protection

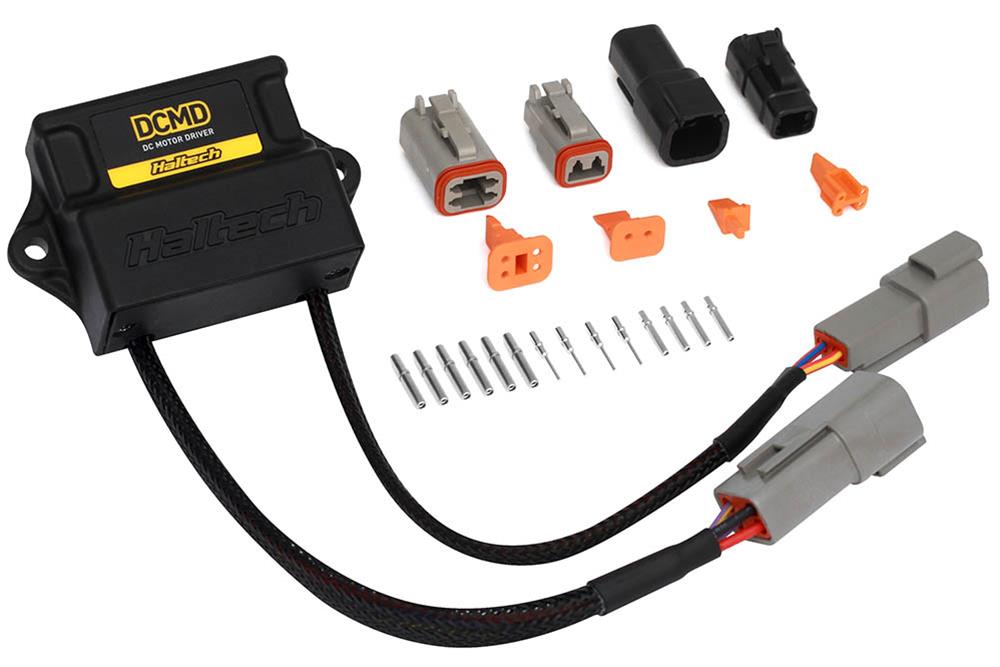

In the box:

* HalTech DC Motor Driver DCMD
* DT02-2S with pins and wedge
* DT06-4S with pins and wedge
* DTM06-4S with pins and wedge
* DTM04-4P with pins and wedge
* Quick Start Guide

Note: Native Turbosmart E-gate control is limited to Elite and Nexus Series ECUs and is not supported on Platinum Series ECUs.
